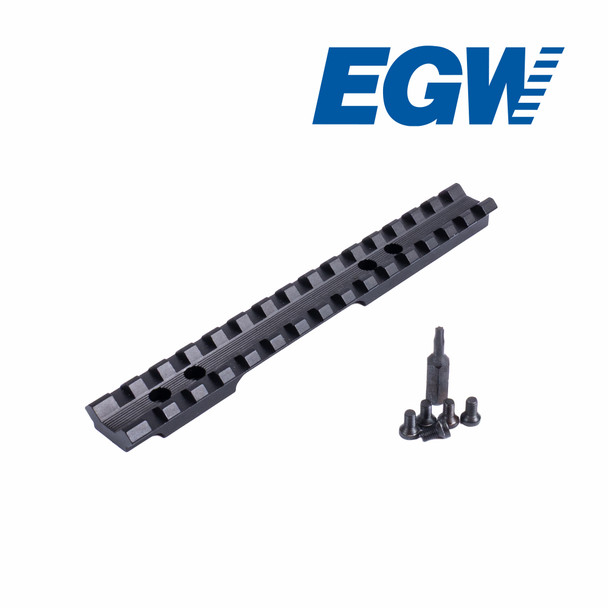

Picatinny Rail for Winchester Xpert Magnum – 20 MOA

The Winchester Xpert Magnum platform is capable of stretching rimfire performance well beyond typical distances. This EGW 20 MOA Picatinny Rail is designed specifically for magnum Xpert rifles, giving your optic additional elevation adjustment for longer-range shooting while maintaining proper fitment and reliable operation.

Unlike .22 LR models, magnum Xpert rifles require a different rail profile. This mount is engineered to ensure proper ejection port clearance, preventing interference during cycling while providing a solid, repeatable mounting platform.

Designed for Magnum Rimfire Performance

Magnum rimfire cartridges like .17 HMR and .17 WSM are capable of extended-range performance. This rail is designed to support that capability by providing additional elevation while maintaining reliable ejection and function.

• ✔ Proper ejection port clearance for magnum cartridges
• ✔ Supports longer-range shooting setups
• ✔ Maintains reliability and cycling performance
• ✔ Lightweight design preserves rifle balance

Why Choose a 20 MOA Rail?

A 20 MOA rail tilts your scope slightly downward at the muzzle end, giving your optic additional upward adjustment. This is essential when shooting at extended distances where more elevation is required.

• ✔ Ideal for 150–300+ yard shooting
• ✔ Maximizes scope elevation travel
• ✔ Perfect for .17 HMR and .17 WSM setups
• ✔ Helps maintain optical center for better clarity

Why Choose a One-Piece Picatinny Rail?

• ✔ Eliminates alignment issues between bases
• ✔ Provides a rigid, one-piece mounting platform
• ✔ Allows precise optic positioning
• ✔ Works with Picatinny and Weaver-style rings

Picatinny vs Weaver – Why Picatinny Wins

• ✔ Standardized slot spacing
• ✔ Compatible with both Picatinny and Weaver rings
• ✔ Stronger and more durable design
• ✔ Industry standard for modern optics

100% Made in the USA

Every EGW Picatinny rail is 100% made in the USA. That includes the rail itself, mounting screws, T-10 bit, packaging, clamshell, and backer card. Everything is produced domestically to ensure consistent quality and reliability.

Frequently Asked Questions

Will this fit the Winchester Xpert .22 LR?

No. This rail is designed specifically for magnum Xpert rifles. The .22 LR models use a different rail design.

Why use a 20 MOA rail on a rimfire?

A 20 MOA rail provides additional elevation adjustment, which is helpful when shooting at longer distances with cartridges like .17 HMR and .17 WSM.

Does this work with Weaver rings?

Yes. This Picatinny rail is compatible with both Picatinny and Weaver-style rings.
