Winchester Xpert Magnum Picatinny Rail 0 MOA

Winchester Xpert Magnum Picatinny Rail 0 MOA

$39.99
  • SKU: 42915
In Stock & Ready To Ship!
Current Stock:Only left:
Description

Picatinny Rail for Winchester Xpert Magnum – 0 MOA

Quick Check: Confirm Your Rifle.
Fits: Winchester Xpert Magnum (.17 HMR, .22 WMR, .17 WSM).
Does NOT Fit: Winchester Xpert .22 LR / .21 Sharp models.
MOA: 0 MOA (ideal for 0–200 yards).
Material: 6061 T6 Aircraft Grade Aluminum.
Made in: 100% USA (including screws, bit, packaging, and hardware).

The Winchester Xpert Magnum rifles are built for higher velocity rimfire cartridges like .17 HMR and .22 WMR. These calibers demand a mounting system that maintains reliability while allowing proper case ejection. This EGW Picatinny rail is specifically designed for the Xpert Magnum platform, ensuring proper fitment without interfering with the ejection port.

Unlike .22 LR versions, magnum Xpert rifles require a different rail profile. This mount is engineered to provide a secure, repeatable mounting platform while maintaining proper clearance for reliable cycling and ejection.

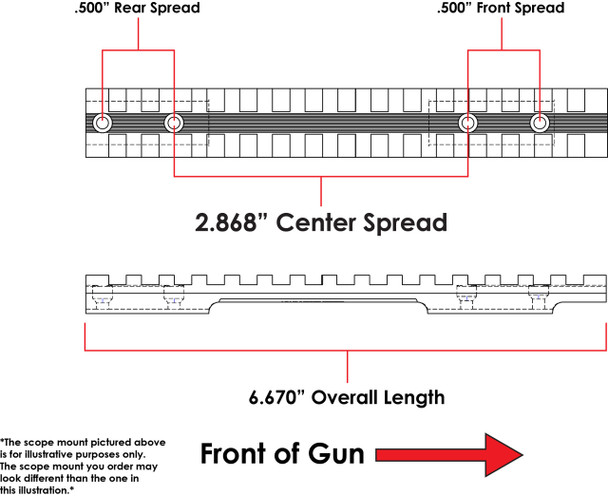

Technical Specifications
  • Rail Type: One Piece Picatinny
  • Machined From: Domestic 6061 T6 Aluminum
  • Finish: Matte Black Anodize
  • Height: .400" (Top of Receiver to Top of Picatinny)
  • Design: Optimized profile for proper ejection port clearance
  • Compatibility: Works with Picatinny and Weaver-style rings

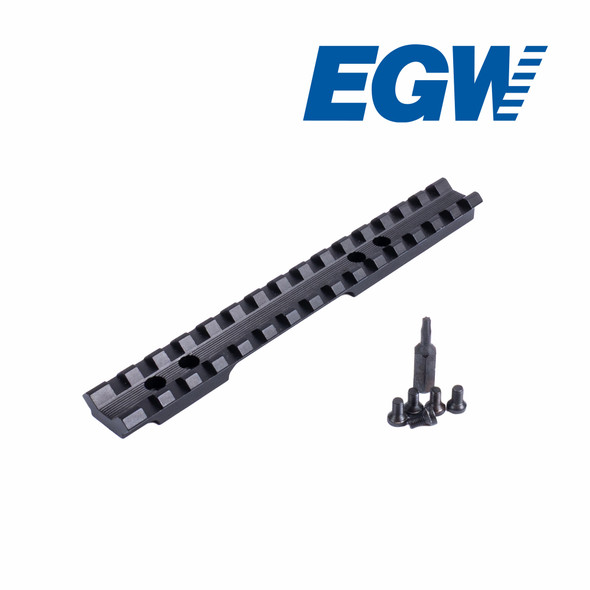

  • Mounting Hardware: #6-48 Screws and T-10 Bit Included
  • Torque Specs: 20 in/lbs (Blue Loctite recommended)

Designed for Magnum Rimfire Performance

Magnum rimfire cartridges generate more velocity and require reliable case ejection. This rail is designed to avoid interference with the ejection port, ensuring consistent cycling and dependable performance in the field.

  • ✔ Proper ejection port clearance for magnum cartridges
  • ✔ Maintains reliability with .17 HMR, .22 WMR, and .17 WSM
  • ✔ Lightweight design preserves rifle balance
  • ✔ Solid mounting platform for optics

Why Choose a One-Piece Picatinny Rail?

A one-piece Picatinny rail provides a stronger and more versatile mounting system compared to two-piece or factory mounting options.

  • ✔ Eliminates alignment issues between bases
  • ✔ Provides a rigid, one-piece mounting surface
  • ✔ Allows precise optic positioning
  • ✔ Works with both Picatinny and Weaver-style rings

Picatinny vs Weaver – Why Picatinny Wins

Picatinny rails use standardized slot spacing, providing more flexibility and compatibility than traditional Weaver-style bases.

  • ✔ Standardized slot spacing for consistent mounting
  • ✔ Compatible with both Picatinny and Weaver rings
  • ✔ Stronger and more durable design
  • ✔ Industry standard for modern optics

0 MOA – When to Choose It

A 0 MOA rail is ideal for most rimfire applications.

  • ✔ Best for zeroing at 50–150 yards
  • ✔ Ideal for hunting and varmint shooting
  • ✔ Keeps your scope centered in its adjustment range

100% Made in the USA

Every EGW Picatinny rail is 100% made in the USA. That includes the rail itself, mounting screws, T-10 bit, packaging, clamshell, and backer card. Everything is produced domestically to ensure consistent quality and reliability.

Frequently Asked Questions

Will this fit the Winchester Xpert .22 LR?

No. This rail is designed specifically for the magnum Xpert models. The .22 LR version uses a different rail design.

Why can’t I use the .22 LR rail on a magnum?

The .22 LR rail extends over the ejection port on magnum rifles, which can interfere with proper case ejection. This rail is designed to prevent that issue.

Does this work with Weaver rings?

Yes. This Picatinny rail is compatible with both Picatinny and Weaver-style rings.
