Quick Check:
Fits: Henry Big Boy Gen 2 (H006) & Big Boy Steel Gen 2 (H012).
Material: Domestic 6061 T6 Extruded Aluminum.
Coating: Burnt Bronze Finish.
Installation: Drop-in design.
Made In: USA.
Product Overview

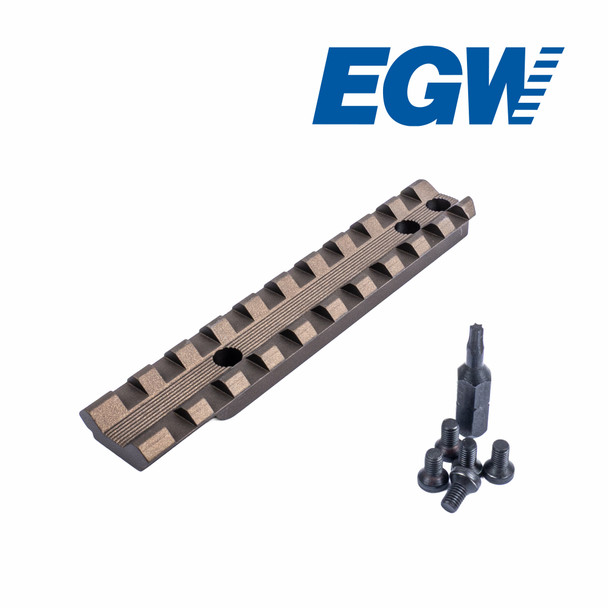

Unlock the true accuracy of your lever-action rifle with the EGW one-piece Picatinny scope mount. Precision-machined in the USA, our high-quality rail features a durable burnt bronze finish, a premium colorway we developed specifically to coordinate seamlessly with the Henry Explorer Carbine platform. This rail provides a rock-solid platform that is a massive upgrade over traditional two-piece bases, with full-length Picatinny cross slots that give the shooter total flexibility when mounting scope rings and other accessories.
We machine these right in our shop using our precision machining centers. After machining, each mount is tumbled, sand-blasted, and treated for long-lasting durability. The integrated channel in the center reduces the overall mass of the mount, keeping your rifle nimble and perfectly balanced. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.
Technical Specifications
- Rail Type: One Piece Picatinny
- Machined From: Domestic 6061 T6 Extruded Aluminum
- Finish: Burnt Bronze Finish
- Rear Spread: .5"
- Front Spread: 2.4"
- Overall Length: 4.306"
- Height: .450" (Top of Receiver to Top of Picatinny)
- Weight: 2 oz.
- Quick Disconnect Ring Compatible: No
- Ambidextrous: Yes
- Torque Specs: 20 in/lbs
- Mounting Hardware: #8-40 X 1/4 Screws and T-10 Bit Included
Compatibility
This mount fits:
- Henry Big Boy Gen 2 (H006)
- Henry Big Boy Steel Gen 2 (H012)
This mount does NOT fit:
Important Fitment Note
This mount was previously marketed as a "Golden Boy" mount. That information was incorrect. This rail will only fit the Big Boy Gen 2/Steel Gen 2 rifles listed above. We always recommend measuring the hole spacing in your receiver to confirm it matches our published dimensions before ordering.
MOA Selection Guide
- 0 MOA: If shooting primarily between 0 - 500 yards.
- 20 MOA: If shooting primarily between 500 - 1000 yards.
When zeroing your rifle with a 20 MOA mount, we recommend zeroing at 200 yards.
Installation Instructions
This rail is designed for a simple, drop-in installation using your receiver's factory holes. We include the necessary #8-40 screws and a T-10 Torx bit. We recommend using 20 inch lbs of torque and a single drip of blue Loctite (Loctite is available through our website and is sold separately).
Frequently Asked Questions
Why do you offer this rail in Burnt Bronze?
We introduced this premium burnt bronze anodized option specifically in response to the Henry Explorer Carbine platform, providing owners a factory-matching aesthetic for their custom lever-action builds.
Do I need a gunsmith to install this rail?
No. This rail is designed for an easy, drop-in installation using the factory drilled and tapped holes on your rifle's receiver. However, if you are uncomfortable doing it yourself, professional help is always a great path.
WE RECOMMEND THIS KIT BE INSTALLED BY A QUALIFIED AND COMPETENT GUNSMITH.
Warning: This product may be alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. To prevent exposure, do not alter the product by welding, grinding, etc. For more information, go to www.P65Warnings.ca.gov.
