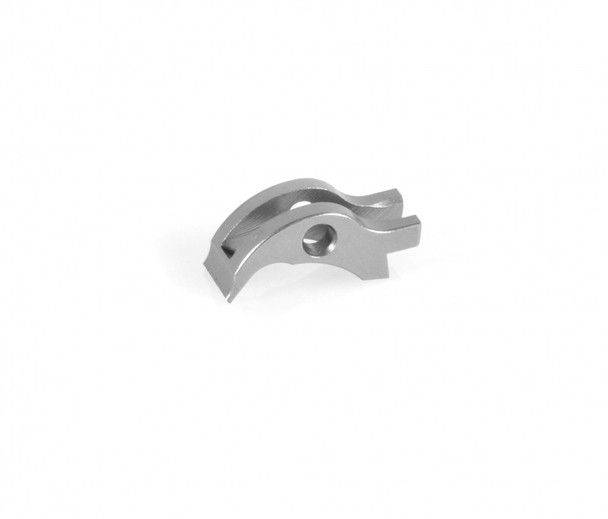

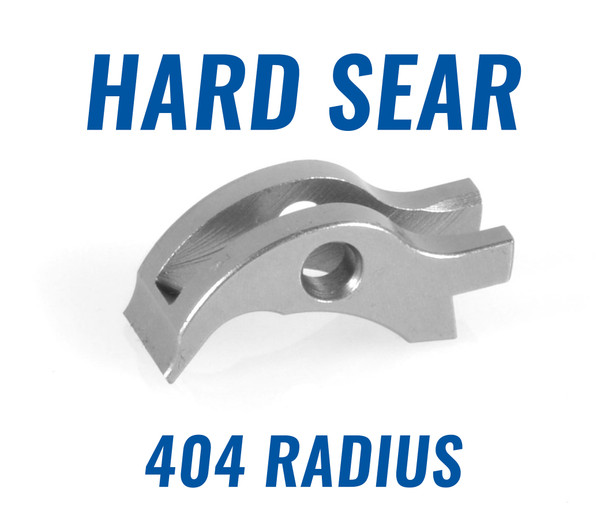

EGW 1911 .404 Radius Hard Sear

Product Overview

The EGW 1911 .404 Radius Hard Sear is designed for shooters and pistolsmiths who want a different trigger characteristic than the traditional crisp 1911 break.

Instead of using a conventional flat sear engagement surface, the working surface at the nose of this sear is manufactured with a .404" radius. This curved geometry changes the way the sear moves through engagement with the hammer hooks as the trigger is pressed.

The result is a trigger that can be set up with a smooth, progressive release. Rather than pressure building against a distinct wall followed by a sudden clean break, the trigger moves progressively through the release. This is commonly referred to as a rolling trigger or roll release.

After machining, the radiused working surface is carefully polished to remove machining marks while maintaining the intended .404" geometry. The finished engagement surface has a smooth, matte-polished appearance rather than a high-gloss finish.

Radiused sear geometry is not a new concept in the 1911 world. Gunsmiths, competitors, tooling manufacturers, and component makers have experimented with and used this style of trigger engagement for many years. EGW recognizes that history. Our goal is not to claim the concept as something new, but to offer an EGW-manufactured .404 Radius Hard Sear with the working radius built directly into the part from the beginning.

What Does .404 Radius Mean?

The .404" specification refers to the radius of the curved working surface at the nose of the sear. This is the portion of the sear that engages the hammer hooks.

The .404" dimension does not describe the overall length of the sear and does not refer to the distance from the center of the sear pin hole to the tip of the sear.

How a Radius Sear Changes Trigger Feel

A traditional 1911 trigger is commonly fitted to produce a distinct wall followed by a crisp release. Pressure builds until the sear clears the hammer hooks, creating the familiar clean break.

A radiused sear is designed to create a different sensation. As the trigger is pressed, the curved sear nose moves progressively through its engagement with the hammer hooks. Instead of the release occurring all at once at one sharply defined point, the shooter feels controlled movement through the release.

This is commonly described as a rolling trigger. The shooter continues applying pressure through a smooth and progressive trigger movement until the hammer releases.

Why Choose a Rolling 1911 Trigger?

Trigger feel is highly personal. Some shooters prefer an extremely crisp trigger with a clearly defined break. Others prefer to feel the trigger moving continuously through the final portion of the trigger pull.

A properly fitted rolling trigger provides feedback throughout the release instead of concentrating everything at one break point. This type of trigger has been used in custom competition and precision 1911 builds by shooters who specifically prefer a controlled, progressive release.

The purpose of the EGW .404 Radius Hard Sear is not simply to make the trigger lighter. Its purpose is to change the character of the trigger pull.

Instead of the traditional 1911 sensation of reaching a wall and breaking through it, the .404 radius is intended to produce a trigger that rolls smoothly through the engagement until the hammer releases.

Manufactured Radius with a Matte-Polished Engagement Surface

EGW has offered longer 1911 sears for many years that pistolsmiths have used to create specialized trigger geometries. EGW has also manufactured radiused sears for OEM applications.

With the EGW .404 Radius Hard Sear, the curved .404" hammer-engagement surface is manufactured directly into the component. Rather than starting with a conventional or extended sear and creating the primary radius by hand, the intended radius is already built into the sear.

After the radius is machined, the engagement surface is polished to remove the machining marks while preserving the intended geometry. This produces a smooth, matte-polished working surface at the point where the sear engages the hammer hooks.

The finishing process is functional rather than cosmetic. The goal is not a bright, mirror-polished appearance. The goal is a smooth engagement surface with the visible machining marks removed while maintaining the designed .404" radius.

Professional fitting is still required. The sear, hammer, springs, safeties, and other components work together as a complete system, and the final trigger characteristics depend on the individual pistol and how the fire-control system is fitted.

An Established Approach to 1911 Trigger Geometry

The concept of using radiused sear engagement to create a rolling trigger has existed in the custom 1911 community for years. Different pistolsmiths, competitors, tooling manufacturers, and component makers have developed their own methods of producing this style of engagement.

EGW recognizes the work that came before this product. The .404 Radius Hard Sear is our approach to an established trigger concept, manufactured as a purpose-built EGW component with the .404" radius incorporated directly into the working surface.

Why Choose the EGW .404 Radius Hard Sear?

• ✔ Designed to produce a smooth, progressive rolling trigger release
• ✔ .404" radius manufactured directly into the sear nose
• ✔ Matte-polished engagement surface with machining marks removed
• ✔ Provides an alternative to the traditional crisp 1911 trigger break
• ✔ Purpose-built radiused hammer-engagement geometry
• ✔ Designed around an established style of custom 1911 trigger work
• ✔ Suitable for competition, precision, and custom 1911 builds
• ✔ Manufactured by Evolution Gun Works
• ✔ Made in the USA

Installation & Fitment

This is not a drop-in trigger component. Proper installation requires evaluation of sear and hammer engagement as well as the complete 1911 fire-control and safety system.

The final amount of roll, trigger pull weight, and overall trigger feel will depend on the individual pistol, hammer geometry, hammer-hook dimensions, springs, component tolerances, and final gunsmith fitting.

The .404 Radius Hard Sear does not guarantee a specific trigger pull weight or exact amount of perceived roll in every firearm.

After installation, the gunsmith must verify proper sear and hammer engagement, trigger reset, disconnector operation, thumb safety operation, grip safety operation, hammer retention, and complete safe firearm function.

Frequently Asked Questions

What does .404" refer to?
The .404" specification refers to the radius of the curved working surface at the tip of the sear where it engages the hammer hooks.

Is .404" measured from the sear pin hole?
No. The .404" dimension describes the radius of the hammer-engagement surface. It is not the distance from the center of the sear pin hole to the tip of the sear.

How does this sear change the trigger pull?
The radiused engagement surface is designed to produce a smooth, progressive release. Instead of pressure building against a defined wall followed by a sudden crisp break, the trigger moves progressively through the release.

What is a rolling trigger?
A rolling trigger allows the shooter to feel controlled movement through the final portion of the trigger press before the hammer releases. The sensation is more progressive than the traditional wall-and-break feel of a crisp 1911 trigger.

Why is the sear nose polished?
After machining, the radiused working surface is polished to remove machining marks while maintaining the intended .404" geometry. This produces a smooth, matte-polished hammer-engagement surface.

Is the engagement surface mirror polished?
No. The surface has a matte-polished finish. The purpose of the polishing operation is to remove machining marks and smooth the working surface rather than create a bright cosmetic finish.

Is a radius sear a new concept?
No. Radiused sear geometry and rolling trigger systems have been used in custom 1911 trigger work for many years. EGW manufactures this version with the .404" working radius built directly into the sear.

Is this intended to make my trigger lighter?
The primary purpose of the .404 Radius Hard Sear is to change the character of the trigger release, not to guarantee a specific pull weight. Final pull weight depends on the complete fire-control system and gunsmith fitting.

Will every pistol have the exact same amount of roll?
No. The final trigger feel depends on the hammer, hammer hooks, springs, component tolerances, and how the complete fire-control system is fitted.

Is this a drop-in part?
No. This sear must be professionally fitted, and the complete fire-control and safety system must be inspected before the firearm is used.
