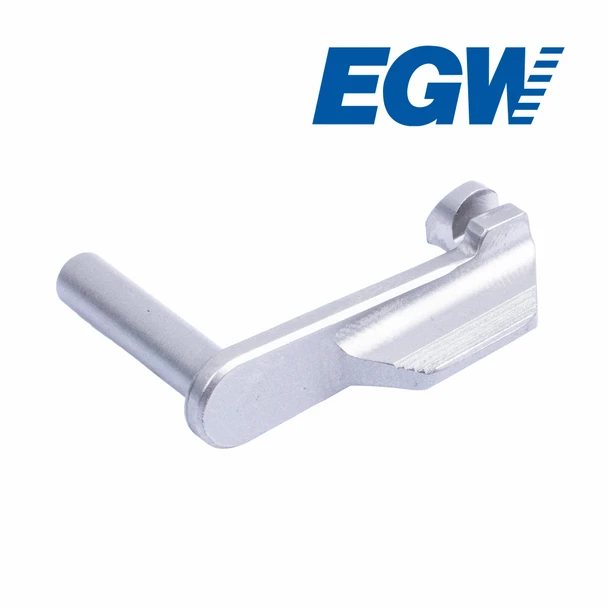

EGW Double Stack 1911 Slide Stop 9mm (.200" Pin) Stainless Steel
Quick Check:
Designed For: Double-stack 1911 / 2011-style pistols
Caliber: 9mm
Pin Diameter: .200"
Pin End: Flat / Faced-Off
Paddle: EGW Ridge-Style Paddle
Material: Stainless Steel Bar Stock
Manufacturing: Machined from solid
Finish: Glass Bead
Installation: Minor fitting may be required
BUILT FOR DOUBLE-STACK 1911s
This is not simply a standard single-stack 1911 slide stop with a different finish. EGW designed this slide stop specifically around double-stack 1911 / 2011-style 9mm pistols, including a .200" pin with a flat, faced-off end rather than the rounded or domed end found on many traditional 1911 slide stops.
Product Overview
The EGW Double Stack 1911 Slide Stop was developed specifically for modern double-stack 1911 and 2011-style pistols chambered in 9mm.
Rather than adapting a traditional single-stack slide stop to the double-stack platform, EGW designed this component around the geometry and appearance commonly used in modern double-stack 1911 builds.
The slide stop uses a .200" diameter pin with a flat, faced-off end. Instead of the end of the pin extending into a rounded or domed profile, the pin terminates with a flat face for a cleaner appearance on the opposite side of the frame.
On the control side, this slide stop uses the same paddle design as our EGW Ridge Slide Stop. The raised Ridge pattern provides a positive textured surface for thumb engagement while maintaining a clean, low-profile appearance.
The entire component is machined from solid stainless steel bar stock and finished with a glass bead treatment for a uniform matte stainless appearance.
Technical Specifications
- Platform: Double-Stack 1911 / 2011-Style
- Caliber: 9mm
- Component: Slide Stop
- Pin Diameter: .200"
- Pin End: Flat / Faced-Off
- Paddle: EGW Ridge Pattern
- Material: Stainless Steel Bar Stock
- Manufacturing: Machined From Solid
- Finish: Glass Bead
- Installation: Minor Fitting May Be Required
Designed Specifically for Double-Stack 1911s
Modern double-stack 1911 and 2011-style pistols may use different frame dimensions and exterior styling than a traditional single-stack 1911.
EGW developed this slide stop specifically for the double-stack 9mm platform rather than treating it as a generic 1911 replacement part.
The result is a slide stop with application-specific geometry, a .200" pin, a flat-faced pin end, and the same Ridge paddle design used on EGW's popular Ridge Slide Stops.
DOUBLE-STACK SPECIFIC DESIGN
This slide stop was developed specifically for double-stack 1911 / 2011-style 9mm pistols. It should not be treated as a universal replacement for every single-stack or double-stack 1911.
.200" Flat-Faced Slide Stop Pin
One of the distinguishing features of this slide stop is the design of the .200" diameter pin.
On many traditional 1911 slide stops, the exposed end of the pin is rounded or domed. On the EGW Double Stack Slide Stop, the end of the pin is faced off flat.
This gives the exposed end of the slide stop pin a flatter, cleaner profile on the opposite side of the frame and better matches the appearance commonly used on modern double-stack 1911 builds.
FLAT PIN END
Traditional Style: The exposed end of the slide stop pin may have a rounded or domed profile.
EGW Double Stack Design: The .200" pin terminates in a flat, faced-off surface rather than a dome.
Same Paddle as the EGW Ridge Slide Stop
The exterior control paddle uses the same design found on the EGW Ridge Slide Stop.
The raised Ridge pattern provides a defined textured surface for thumb contact when manually locking or releasing the slide without requiring a large competition-style extension.
For builders already using other EGW controls, the Ridge paddle also provides a consistent appearance across the pistol.
LOOKING FOR A SMOOTH PADDLE?
EGW does not currently manufacture this slide stop with a completely smooth exterior pad. This model uses the EGW Ridge paddle.
Machined From Solid Stainless Steel
The EGW Double Stack Slide Stop is machined from solid stainless steel bar stock.
Machining the component from solid material allows EGW to control important dimensions throughout the part, including the .200" slide stop pin, internal lug geometry, and exterior paddle.
After machining, the stainless steel receives a glass bead finish for a uniform matte appearance that pairs naturally with stainless or contrasting double-stack 1911 builds.
Why Choose the EGW Double Stack Slide Stop?
- ✔ Designed specifically for double-stack 1911 / 2011-style pistols
- ✔ Designed for 9mm applications
- ✔ .200" diameter slide stop pin
- ✔ Flat, faced-off pin end instead of a rounded or domed end
- ✔ Same paddle design as the EGW Ridge Slide Stop
- ✔ Positive textured thumb engagement
- ✔ Machined from solid stainless steel bar stock
- ✔ Glass bead finish
- ✔ Purpose-built for modern double-stack 1911 builds
- ✔ Manufactured by Evolution Gun Works
Installation & Fitment
This slide stop is designed around double-stack 1911 / 2011-style 9mm pistols. However, frame dimensions, barrel links, magazines, and related components can vary considerably between manufacturers.
Minor fitting may be required to achieve proper operation in the individual pistol.
After installation, verify proper pin fit, barrel link movement, slide travel, magazine follower engagement, plunger engagement, slide lockback, and complete firearm function.
FITMENT NOTE
Double-stack 1911 and 2011-style pistols are produced by multiple manufacturers and dimensions can vary. Minor fitting may be required. Always verify proper operation with your specific frame, barrel, barrel link, magazine, and related components.
Frequently Asked Questions
What type of pistol is this slide stop designed for?
This slide stop was developed specifically for double-stack 1911 and 2011-style pistols chambered in 9mm.
What is the pin diameter?
The slide stop uses a .200" diameter pin.
What does flat-faced pin mean?
The exposed end of the slide stop pin is faced off flat rather than finished with the rounded or domed profile found on many traditional 1911 slide stops.
Does it use the same paddle as the EGW Ridge Slide Stop?
Yes. The exterior control paddle uses the same Ridge pattern as the EGW Ridge Slide Stop.
What is the slide stop made from?
It is machined from solid stainless steel bar stock.
What finish does it have?
The stainless steel receives a glass bead finish for a uniform matte appearance.
Is this intended for single-stack 1911s?
This model was developed specifically for double-stack 1911 / 2011-style pistols. Use the appropriate EGW slide stop for your specific pistol configuration.
Does EGW offer this with a smooth paddle?
No. This version uses the EGW Ridge paddle.
Will this require fitting?
Minor fitting may be required because double-stack 1911 frames, barrel links, magazines, and related components can vary between manufacturers.
INSTALLATION & SAFETY WARNING
WE RECOMMEND THIS SLIDE STOP BE INSTALLED AND CHECKED BY A QUALIFIED AND COMPETENT GUNSMITH. Verify slide stop engagement, barrel link movement, magazine follower contact, plunger tension, slide lockback, and complete firearm function before use.
A Slide Stop Built for Modern Double-Stack 1911s
With a .200" flat-faced pin, the EGW Ridge paddle, solid stainless steel construction, and geometry developed specifically for double-stack 9mm 1911s, this slide stop gives modern 2011-style builds a purpose-built EGW option.
