This mount fits:

• CVA Cascade Long Action Models

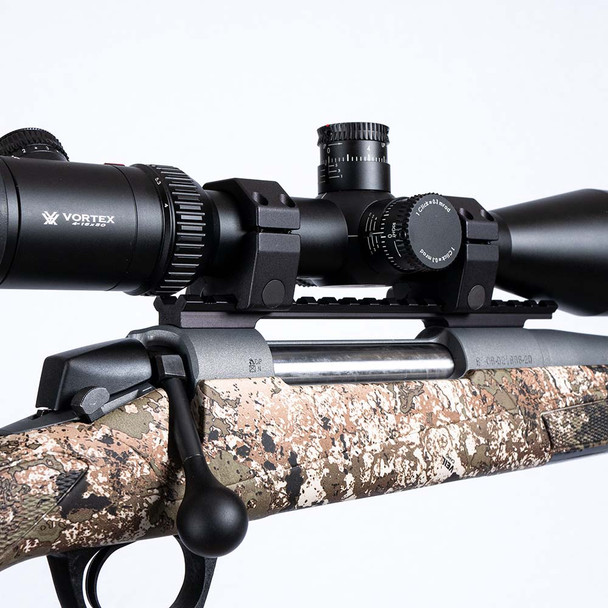

  We recommend using Medium Height Rings with this mount with 50mm objective lens scopes. The image above with the 50mm objective lens scope uses our low rings and there is very little room for adjustment for eye relief.

Specifications

Rail Type: One Piece Picatinny
Machined from: Domestic 6061 T6 Extruded Aluminum
Finish: Matte Black Anodizing
Center Spread: 4.11"
Overall Length: 7.458"
Height: .4" (Top of Receiver to Top of Picatinny)
Weight: 2 oz.
Quick Disconnect Ring Compatible: No
Ambidextrous: Yes
Torque Specs: 20 in/lbs
Mounting Hardware: #6-48 X 1/4 Screws and T-10 Bit Included

Need a scope mount for your CVA Cascade? Our one piece CVA Cascade Long Action 20 MOA picatinny scope mount can help. Utilizing a multi-slot design, our scope base allows your scope rings to be mounted virtually anywhere along the base for a quick and easy mounting process.

We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.

Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct usage of factory iron sights. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.

We machine these in our shop using one of our machining centers. After machining, the mounts are tumbled, sand blasted, and Type II anodized for long lasting durability.

Installation: We recommend 20 inch lbs of torque and a drip of blue loctite (loctite is available through our website and is sold separately).

The entire mount and accessories (from the mounting screws and wrench down to the packaging) are made in the USA.
