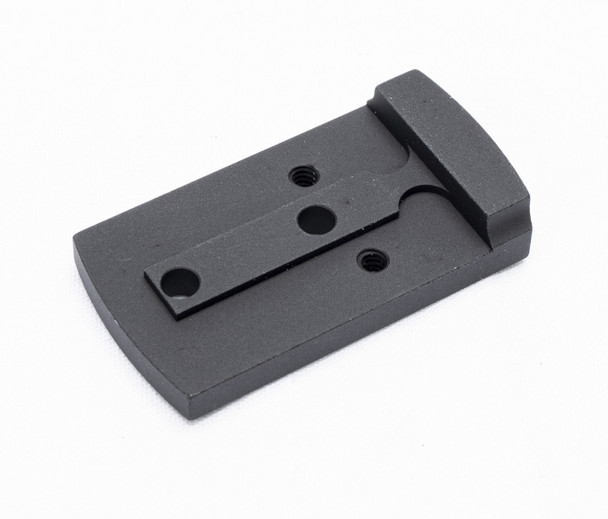

Red Dot Sight Mount for Smith and Wesson (S&W) Revolver (fits Vortex Viper / Venom, Burris FastFire and Docter)

12 reviews(12) Write a Review
Ask Questions

Red Dot Sight Mount for Smith and Wesson (S&W) Revolver (fits Vortex Viper / Venom, Burris FastFire and Docter)

$49.99
  • SKU: 49319
In Stock & Ready To Ship!
Current Stock:Only left:
Description

This Evolution Gun Works - EGW mounts was designed to fit :

  • Smith & Wesson K Frame Revolvers
  • Smith & Wesson L Frame Revolvers
  • Smith & Wesson N Frame Revolvers
  • Smith & Wesson X Frame Revolvers

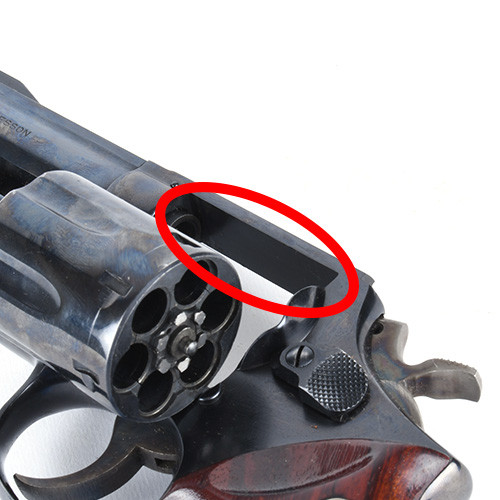

If your revolver is not drilled and tapped this mount will not work. The best way to verify that it is/is not drilled and tapped is to open the cylinder and check the rib underneath. There should be through holes that are drilled and tapped. If there are not (like the above image) this mount will not work without you having the gun drilled and tapped. You can have a competent and qualified gunsmith drill and tap the top strap with the standard S&W hole pattern which will allow you to use our mount.

Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.811"
Overall Width: .99"
Mounting Hardware: (2) 6-32 Button Head Screws, (2) 6-32 Flat Head Screws, (1) 6-48 Torx Head Screw

Simply remove the rear sight on your gun and replace it with our mount in order to mount your Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. You can take our mount off and replace your rear sight at any time. Mounting hardware included.

Installation Instructions
- Remove the rear sight*
- Install the EGW Sight Mount in place of the rear sight
- Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs

2 Button Head Cap Screws - Provided for Vortex Viper and Venom Sights
2 Flat Head Cap Screws - Provided for Burris FastFire and Docter Sights

The screws that are included with this mount require a 5/64'' allen wrench for installation.

Click here to see a video from Vortex on how to install our red dot base on a slide.

Warning: This product may be alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. To prevent exposure, do not alter the product by welding, grinding, etc. For more information, go to www.P65Warnings.ca.gov.


K-frame (medium) models

    • S&W 10 Police Vortex Viper Red Dot Mount
    • S&W 11 Vortex Viper Red Dot Mount
    • S&W 12 Vortex Viper Red Dot Mount
    • S&W 13 Vortex Viper Red Dot Mount
    • S&W 14 Vortex Viper Red Dot Mount
    • S&W 15 Vortex Viper Red Dot Mount
    • S&W 16 Vortex Viper Red Dot Mount
    • S&W 17 Vortex Viper Red Dot Mount
    • S&W 18 Vortex Viper Red Dot Mount
    • S&W 19 Vortex Viper Red Dot Mount
    • S&W 48 Vortex Viper Red Dot Mount
    • S&W 53 Vortex Viper Red Dot Mount
    • S&W 64 Vortex Viper Red Dot Mount
    • S&W 65 Vortex Viper Red Dot Mount
    • S&W 66 Vortex Viper Red Dot Mount
    • S&W 67 Vortex Viper Red Dot Mount
    • S&W 68 Vortex Viper Red Dot Mount
    • S&W 617 Vortex Viper Red Dot Mount

L-frame (medium-large) models

    • S&W 386 Vortex Viper Red Dot Mount
    • S&W 586 Vortex Viper Red Dot Mount
    • S&W 686 Vortex Viper Red Dot Mount
    • S&W 686+ Vortex Viper Red Dot Mount
    • S&W 619 Vortex Viper Red Dot Mount
    • S&W 620 Vortex Viper Red Dot Mount
    • S&W 646 Vortex Viper Red Dot Mount
    • S&W 69 Vortex Viper Red Dot Mount

N-frame (large) models (formerly S-frame)

    • S&W 29s Vortex Viper Red Dot Mount
    • S&W 1917 Vortex Viper Red Dot Mount
    • S&W 22 Vortex Viper Red Dot Mount
    • S&W 24 Vortex Viper Red Dot Mount
    • S&W 25 Vortex Viper Red Dot Mount
    • S&W 27 Vortex Viper Red Dot Mount
    • S&W 28 Vortex Viper Red Dot Mount
    • S&W 29 Vortex Viper Red Dot Mount
    • S&W 57 Vortex Viper Red Dot Mount
    • S&W 58 Vortex Viper Red Dot Mount
    • S&W 610 Vortex Viper Red Dot Mount
    • S&W 625 Vortex Viper Red Dot Mount
    • S&W 627 Vortex Viper Red Dot Mount
    • S&W 629 Vortex Viper Red Dot Mount

X-frame models

  • S&W 500 Vortex Viper Red Dot Mount
  • S&W 460XVR[46] Vortex Viper Red Dot Mount
