Mounting Hardware is Included
This mount fits (including but not limited to):
- Smith & Wesson K Frame Revolvers
- Smith & Wesson L Frame Revolvers
- Smith & Wesson N Frame Revolvers
- Smith & Wesson X Frame Revolvers

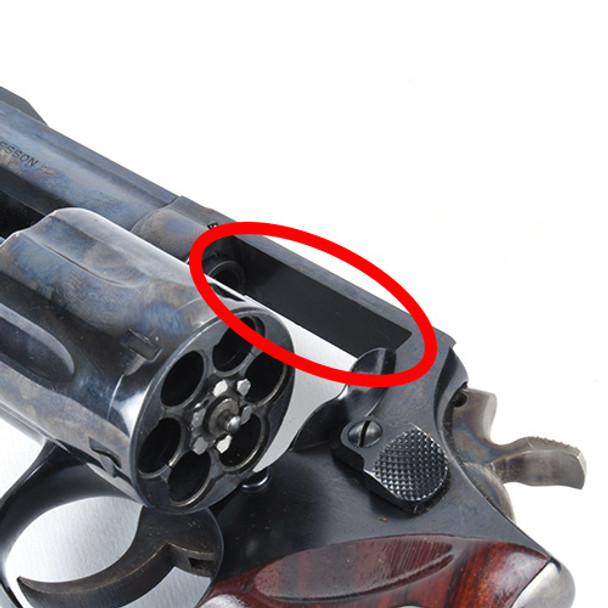

If your revolver is not drilled and tapped this mount will not work. The best way to verify that it is/is not drilled and tapped is to open the cylinder and check the rib underneath. There should be through holes that are drilled and tapped. If there are not (like the above image) this mount will not work without you having the gun drilled and tapped. You can have a competent and qualified gunsmith drill and tap the top strap with the standard S&W hole pattern which will allow you to use our mount.
Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.780"
Overall Width: 1.1"
Mounting Hardware: (2) 6-32 Flat Head Screws, (1) 6-32 X 3/16 Set Screw
Red Dot Fitment: Trijicon RMR / SRO, Holosun HE407C / HE507C / HS407C / HS507C, Swampfox Kingslayer / Liberty / Justice
Simply remove the rear sight on your gun and replace it with our mount in order to mount your Trijicon RMR red dot sight. You can take our mount off and replace your rear sight at any time. Mounting hardware included.
Installation Instructions
- Remove the rear sight*
- Install the EGW Sight Mount in place of the rear sight
- Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs
2 Flat Head Cap Screws - Provided for Trijicon RMR
The screws that are included with this mount require a 5/64'' allen wrench for installation.
Click here to see a video from Vortex on how to install our red dot base on a slide.
Warning: This product may be alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. To prevent exposure, do not alter the product by welding, grinding, etc. For more information, go to www.P65Warnings.ca.gov.
K-frame (medium) models
- S&W 10 Police Trijicon RMR Red Dot Mount
- S&W 11 Trijicon RMR Red Dot Mount
- S&W 12 Trijicon RMR Red Dot Mount
- S&W 13 Trijicon RMR Red Dot Mount
- S&W 14 Trijicon RMR Red Dot Mount
- S&W 15 Trijicon RMR Red Dot Mount
- S&W 16 Trijicon RMR Red Dot Mount
- S&W 17 Trijicon RMR Red Dot Mount
- S&W 18 Trijicon RMR Red Dot Mount
- S&W 19 Trijicon RMR Red Dot Mount
- S&W 48 Trijicon RMR Red Dot Mount
- S&W 53 Trijicon RMR Red Dot Mount
- S&W 64 Trijicon RMR Red Dot Mount
- S&W 65 Trijicon RMR Red Dot Mount
- S&W 66 Trijicon RMR Red Dot Mount
- S&W 67 Trijicon RMR Red Dot Mount
- S&W 68 Trijicon RMR Red Dot Mount
- S&W 617 Trijicon RMR Red Dot Mount
L-frame (medium-large) models
- S&W 386 Trijicon RMR Red Dot Mount
- S&W 586 Trijicon RMR Red Dot Mount
- S&W 686 Trijicon RMR Red Dot Mount
- S&W 686+ Trijicon RMR Red Dot Mount
- S&W 619 Trijicon RMR Red Dot Mount
- S&W 620 Trijicon RMR Red Dot Mount
- S&W 646 Trijicon RMR Red Dot Mount
- S&W 69 Trijicon RMR Red Dot Mount
N-frame (large) models (formerly S-frame)
- S&W 29s Trijicon RMR Red Dot Mount
- S&W 1917 Trijicon RMR Red Dot Mount
- S&W 22 Trijicon RMR Red Dot Mount
- S&W 24 Trijicon RMR Red Dot Mount
- S&W 25 Trijicon RMR Red Dot Mount
- S&W 27 Trijicon RMR Red Dot Mount
- S&W 28 Trijicon RMR Red Dot Mount
- S&W 29 Trijicon RMR Red Dot Mount
- S&W 57 Trijicon RMR Red Dot Mount
- S&W 58 Trijicon RMR Red Dot Mount
- S&W 610 Trijicon RMR Red Dot Mount
- S&W 625 Trijicon RMR Red Dot Mount
- S&W 627 Trijicon RMR Red Dot Mount
- S&W 629 Trijicon RMR Red Dot Mount
X-frame models
- S&W 500 Trijicon RMR Red Dot Mount
- S&W 460XVR[46] Trijicon RMR Red Dot Mount
