EGW Hunter Howa 1500 / Weatherby Vanguard Short Action Picatinny Rail 20 MOA
Quick Check:
Fits: Standard Howa 1500 Short Action and Weatherby Vanguard Short Action rifles
Does Not Fit: Howa 1500 Superlite
Action Length: Short Action
Series: Hunter
Elevation: 20 MOA
Material: 7075-T6 Aluminum
Finish: Black Type III Hardcoat Anodized
Center Hole Spread: 3.886"
Rail Type: One-Piece Picatinny
SKU: 58112
Made In: USA
STANDARD HOWA 1500 SHORT ACTION ONLY
This rail fits the standard Howa 1500 Short Action and corresponding Weatherby Vanguard Short Action receiver. It does not fit the Howa 1500 Superlite, Howa Mini Action, or Howa 1500 Long Action.
Product Overview
The EGW Hunter Series Howa 1500 / Weatherby Vanguard Short Action Picatinny Rail combines high-strength 7075-T6 aluminum construction with a streamlined profile developed specifically for hunting and field rifles.
Machined from solid 7075-T6 aluminum, the Hunter Series provides a strong, lightweight one-piece mounting platform for scopes and other compatible optics.
Compared with a traditional full-length Heavy Duty rail, the Hunter Series uses a shorter front profile and chamfered edges. The reduced front overhang helps provide additional clearance around larger objective lenses, while the beveled exterior creates a cleaner profile for a rifle that will be carried in the field.
This version incorporates 20 MOA of built-in elevation, helping preserve more of your scope's internal elevation adjustment for longer-range shooting.
The rail is finished with Black Type III Hardcoat Anodizing for a durable exterior surface suitable for hunting, range use, and demanding field conditions.
Technical Specifications
- SKU: 58112
- Brands: Howa / Weatherby
- Models: Howa 1500 / Weatherby Vanguard
- Action Length: Short Action
- Rail Type: One-Piece Picatinny
- Series: Hunter
- Elevation: 20 MOA
- Material: Solid 7075-T6 Aluminum
- Finish: Black Type III Hardcoat Anodized
- Center Hole Spread: 3.886"
- Ambidextrous: Yes
- Ring Compatibility: Picatinny and compatible Weaver-style rings
- Made In: USA
Fits Howa 1500 & Weatherby Vanguard Short Actions
This mount uses the standard Howa 1500 Short Action receiver pattern, which is also used on corresponding Weatherby Vanguard Short Action rifles.
Designed to fit:
- Howa 1500 Short Action
- Weatherby Vanguard Short Action
The receiver has a center mounting hole spread of approximately 3.886".
DOES NOT FIT THE HOWA 1500 SUPERLITE
The Howa 1500 Superlite uses a different receiver and mounting pattern. If you have a Superlite, use an EGW rail specifically designed for the Howa 1500 Superlite.

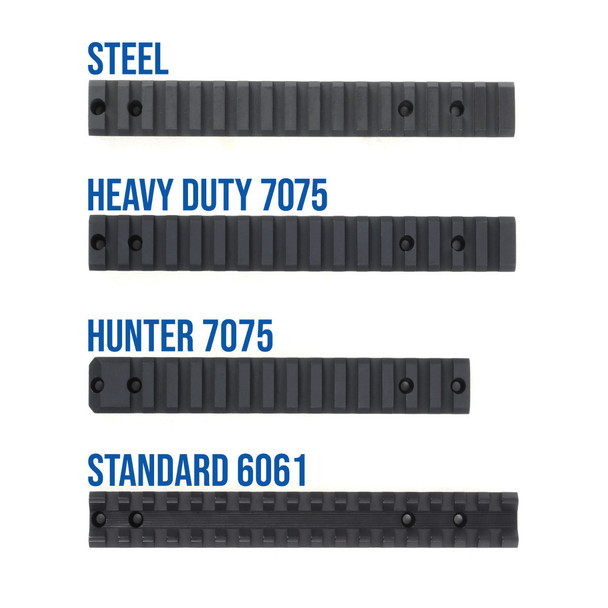

What Makes the Hunter Series Different?
The Hunter Series was developed for shooters who want the strength of a 7075 aluminum rail in a more streamlined package designed around a hunting rifle.
It uses 7075-T6 aluminum along with a shorter forward profile and chamfered exterior edges to reduce unnecessary bulk while retaining a strong one-piece Picatinny mounting platform.
THE HUNTER SERIES DIFFERENCE
7075-T6 Aluminum: High-strength aluminum construction in a lightweight scope mounting platform.
Shorter Front Profile: Reduces unnecessary forward overhang and provides additional clearance around larger scope objectives.
Chamfered Edges: Creates a smoother profile that is less likely to catch on clothing, cases, slings, packs, or brush.
Type III Hardcoat: Provides a durable exterior surface for regular field use.
7075-T6 Aluminum Construction
The Hunter Series rail is machined from solid 7075-T6 aluminum.
7075-T6 provides greater strength than the 6061 aluminum used in EGW Standard Duty rails while retaining the low weight that makes aluminum a natural choice for hunting rifles.
For hunters and long-range shooters who want a strong one-piece mounting platform without moving to a heavier steel rail, the Hunter Series provides an excellent balance.
Why Choose 20 MOA?
A 20 MOA rail incorporates forward cant into the optic mounting surface.
This effectively positions the scope so that more of its internal elevation adjustment remains available for dialing upward at longer distances.
For shooters who intend to use their Howa 1500 or Weatherby Vanguard beyond typical hunting distances, the additional adjustment provided by a 20 MOA base can be especially useful.
0 MOA VS. 20 MOA
0 MOA: Neutral mounting surface. A straightforward choice for typical hunting distances and general-purpose shooting.
20 MOA: Adds forward cant to preserve more of the scope's elevation adjustment for longer-range dialing.
Shorter, Cleaner Hunting Profile
Traditional full-length tactical rails can extend farther forward than necessary for many hunting scopes.
The Hunter Series shortens the front portion of the rail while retaining the Picatinny slots needed for normal scope ring positioning.
The reduced front profile can also provide additional room beneath larger objective bells, which can help when setting up a low-mounted hunting optic.
Chamfered Edges for Field Use
The Hunter Series uses chamfered and beveled exterior edges to create a cleaner profile than a traditional squared-off tactical rail.
Reducing sharp corners and unnecessary material helps make the rail less prone to catching when moving the rifle in and out of a soft case, scabbard, pack, sling, or through brush.
Black Type III Hardcoat Anodized
After machining, the rail receives a Black Type III Hardcoat Anodized finish.
The hardcoat treatment increases surface hardness while providing the matte-black exterior expected on a modern hunting and precision rifle setup.
One-Piece Picatinny Mounting Platform
The one-piece Picatinny design provides multiple positions for scope ring placement.
That flexibility makes it easier to establish proper eye relief and ring spacing than with traditional fixed-position two-piece scope bases.
The rail is compatible with Picatinny scope rings and compatible Weaver-style rings.
Why Choose the EGW Hunter Series 20 MOA Rail?
- ✔ Fits standard Howa 1500 Short Action rifles
- ✔ Fits Weatherby Vanguard Short Action rifles
- ✔ 3.886" center mounting hole spread
- ✔ 20 MOA of built-in elevation
- ✔ Machined from solid 7075-T6 aluminum
- ✔ Black Type III Hardcoat Anodized finish
- ✔ Shorter front profile
- ✔ Chamfered edges help reduce snagging
- ✔ Lightweight hunting-oriented design
- ✔ One-piece Picatinny mounting platform
- ✔ Flexible scope ring positioning
- ✔ Ambidextrous design
- ✔ Made in the USA
Installation & Fitment
Before ordering, confirm that your rifle is a standard Howa 1500 Short Action or Weatherby Vanguard Short Action.
The receiver's center hole spread should measure approximately 3.886".
Clean the receiver and mounting hardware before installation and verify that the rail sits completely flush against the receiver before tightening the screws.
EGW recommends tightening the mounting screws to 20 in-lbs with a small amount of blue threadlocker.
Minor fitment may be required due to manufacturing tolerances.
CHECK YOUR HOWA RECEIVER BEFORE ORDERING
Standard Howa 1500 Short Action, Howa 1500 Long Action, Howa Mini Action, and Howa 1500 Superlite receivers use different rail patterns. This mount is specifically for the standard Howa 1500 / Weatherby Vanguard Short Action.
Frequently Asked Questions
Will this fit a Howa 1500 Short Action?
Yes. This rail is designed for the standard Howa 1500 Short Action receiver.
Will this fit a Weatherby Vanguard Short Action?
Yes. The corresponding Weatherby Vanguard Short Action uses the compatible receiver mounting pattern.
Will this fit the Howa 1500 Superlite?
No. The Howa 1500 Superlite requires a Superlite-specific scope rail.
Will this fit a Howa Mini Action?
No. The Howa Mini Action uses a different receiver and mounting pattern.
What is the mounting hole spread?
The center spread is approximately 3.886".
What is the Hunter rail made from?
It is machined from solid 7075-T6 aluminum.
What makes the Hunter Series different?
The Hunter Series combines 7075-T6 construction with a shorter front profile and chamfered edges for a lighter, cleaner, less snag-prone hunting setup.
What does 20 MOA do?
The rail adds forward cant to preserve more of your scope's internal elevation adjustment for longer-range dialing.
Should I choose 0 MOA or 20 MOA?
Choose 0 MOA for a neutral mounting surface suited to most general hunting applications. Choose 20 MOA when additional elevation adjustment is useful for extended-range shooting.
What finish does the rail have?
The rail receives a Black Type III Hardcoat Anodized finish.
What scope rings can I use?
The rail is designed for Picatinny scope rings and is also compatible with many Weaver-style rings.
7075 Hunter Construction with 20 MOA for Longer-Range Shooting
The EGW Hunter Series gives Howa 1500 and Weatherby Vanguard Short Action owners a strong 7075-T6 aluminum Picatinny rail with a streamlined hunting profile and 20 MOA of built-in elevation for extended-range shooting.
Warning: This product may be alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. To prevent exposure, do not alter the product by welding, grinding, or similar processes. For more information, visit www.P65Warnings.ca.gov.
