This mount fits:
- Smith & Wesson K Frame Revolvers
- Smith & Wesson L Frame Revolvers
- Smith & Wesson N Frame Revolvers
- Smith & Wesson X Frame Revolvers

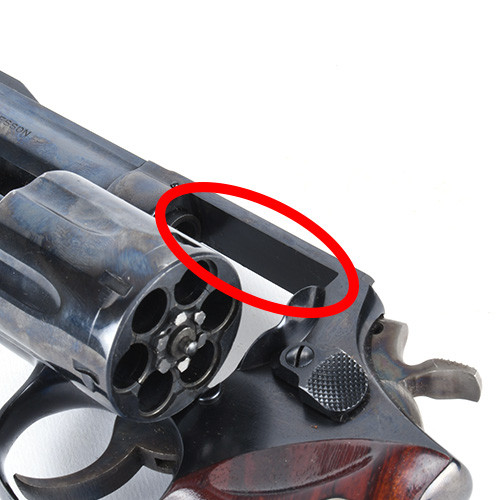

If your revolver is not drilled and tapped this mount will not work. The best way to verify that it is/is not drilled and tapped is to open the cylinder and check the rib underneath. There should be through holes that are drilled and tapped. If there are not (like the above image) this mount will not work without you having the gun drilled and tapped. You can have a competent and qualified gunsmith drill and tap the top strap with the standard S&W hole pattern which will allow you to use our mount.
Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.604"
Overall Width: .99"
Mounting Hardware: (2) 6-32 Button Head Screws, (1) 6-32 X 3/16 Set Screw
Red Dot Fitment:
Bushnell RXS-100
Crimson Trace CTS-1500
Holosun 407K*
Holosun 407k-GR
Holosun 507K*
Holosun 507k-GR
Holosun EPS-GR*
Holosun EPS-RD*
Holosun EPS-Carry-GR*
Holosun EPS-Carry-RD*
Jpoint
Leupold Delta Point Pro
Optima
Redfield Accelerator
Shield RMS
Shield RMSc
Shield SMS
Sig Romeo Zero
K-frame (medium) models
- S&W 10 Police Vortex Viper Red Dot Mount
- S&W 11 Vortex Viper Red Dot Mount
- S&W 12 Vortex Viper Red Dot Mount
- S&W 13 Vortex Viper Red Dot Mount
- S&W 14 Vortex Viper Red Dot Mount
- S&W 15 Vortex Viper Red Dot Mount
- S&W 16 Vortex Viper Red Dot Mount
- S&W 17 Vortex Viper Red Dot Mount
- S&W 18 Vortex Viper Red Dot Mount
- S&W 19 Vortex Viper Red Dot Mount
- S&W 48 Vortex Viper Red Dot Mount
- S&W 53 Vortex Viper Red Dot Mount
- S&W 64 Vortex Viper Red Dot Mount
- S&W 65 Vortex Viper Red Dot Mount
- S&W 66 Vortex Viper Red Dot Mount
- S&W 67 Vortex Viper Red Dot Mount
- S&W 68 Vortex Viper Red Dot Mount
- S&W 617 Vortex Viper Red Dot Mount
L-frame (medium-large) models
- S&W 386 Vortex Viper Red Dot Mount
- S&W 586 Vortex Viper Red Dot Mount
- S&W 686 Vortex Viper Red Dot Mount
- S&W 686+ Vortex Viper Red Dot Mount
- S&W 619 Vortex Viper Red Dot Mount
- S&W 620 Vortex Viper Red Dot Mount
- S&W 646 Vortex Viper Red Dot Mount
- S&W 69 Vortex Viper Red Dot Mount
N-frame (large) models (formerly S-frame)
- S&W 29s Vortex Viper Red Dot Mount
- S&W 1917 Vortex Viper Red Dot Mount
- S&W 22 Vortex Viper Red Dot Mount
- S&W 24 Vortex Viper Red Dot Mount
- S&W 25 Vortex Viper Red Dot Mount
- S&W 27 Vortex Viper Red Dot Mount
- S&W 28 Vortex Viper Red Dot Mount
- S&W 29 Vortex Viper Red Dot Mount
- S&W 57 Vortex Viper Red Dot Mount
- S&W 58 Vortex Viper Red Dot Mount
- S&W 610 Vortex Viper Red Dot Mount
- S&W 625 Vortex Viper Red Dot Mount
- S&W 627 Vortex Viper Red Dot Mount
- S&W 629 Vortex Viper Red Dot Mount
X-frame models
- S&W 500 Vortex Viper Red Dot Mount
- S&W 460XVR[46] Vortex Viper Red Dot Mount

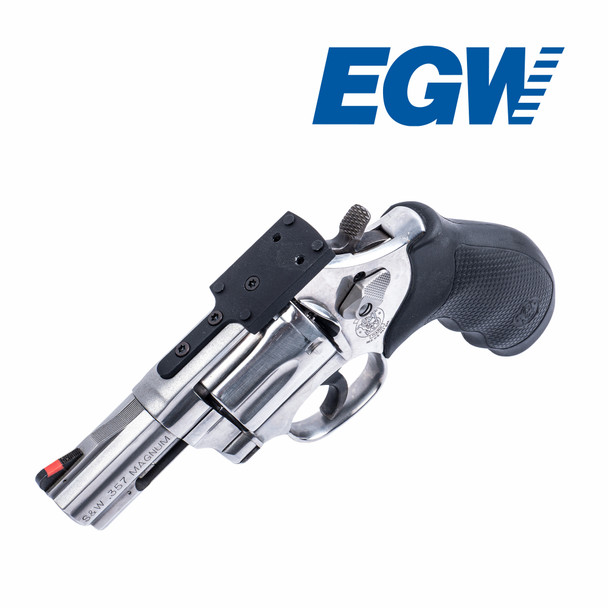

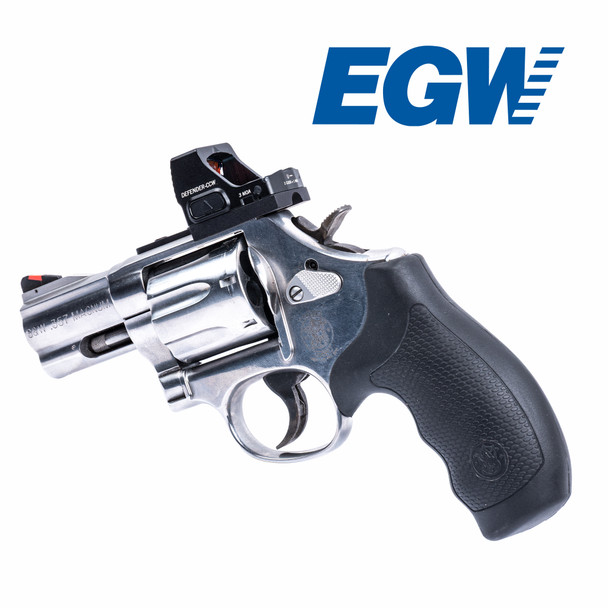

Simply remove the rear sight on your gun and replace it with our mount in order to mount your Leupold DeltaPoint Pro, JPoint, Redfield Accelerator, or Optima red-dot sight. You can take our mount off and replace your rear sight at any time. Mounting hardware included.
Installation Instructions
- Remove the rear sight*
- Install the EGW Sight Mount in place of the rear sight
- Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs
WE RECOMMEND THIS PLATE BE INSTALLED BY A QUALIFIED AND COMPETENT GUNSMITH.
Modification of your firearm may nullify the manufacturer's warranty.
This product should be installed and checked by a qualified gunsmith.
No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.
