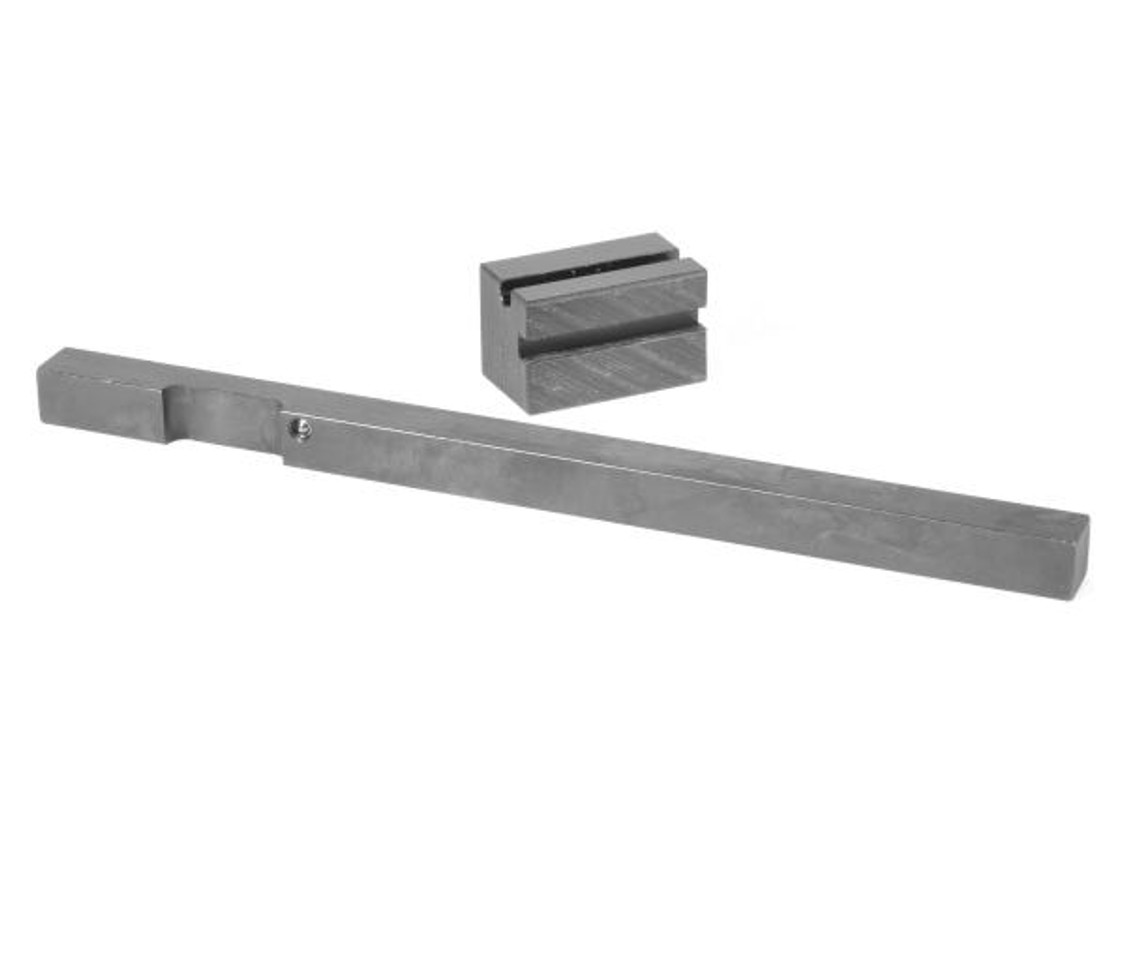

How To Use Our EGW Delrin Plunger Tube Stake-In Tool
The EGW Delrin Plunger Tube Stake-In Tool is a specially designed tool that simplifies the installation of a plunger tube on a 1911 pistol frame. The tool is made of Delrin, a high-strength thermoplastic material that is lightweight, and steel. It features a precision fit that ensures the plunger tube is staked in place correctly and securely, preventing it from coming loose.
Tools you will need:
-EGW plunger tube stake-in tool
-Air Grinder or Dremel
-Red Loctite
-Vice
-Hammer
-1/16th Hex Key for staking screw

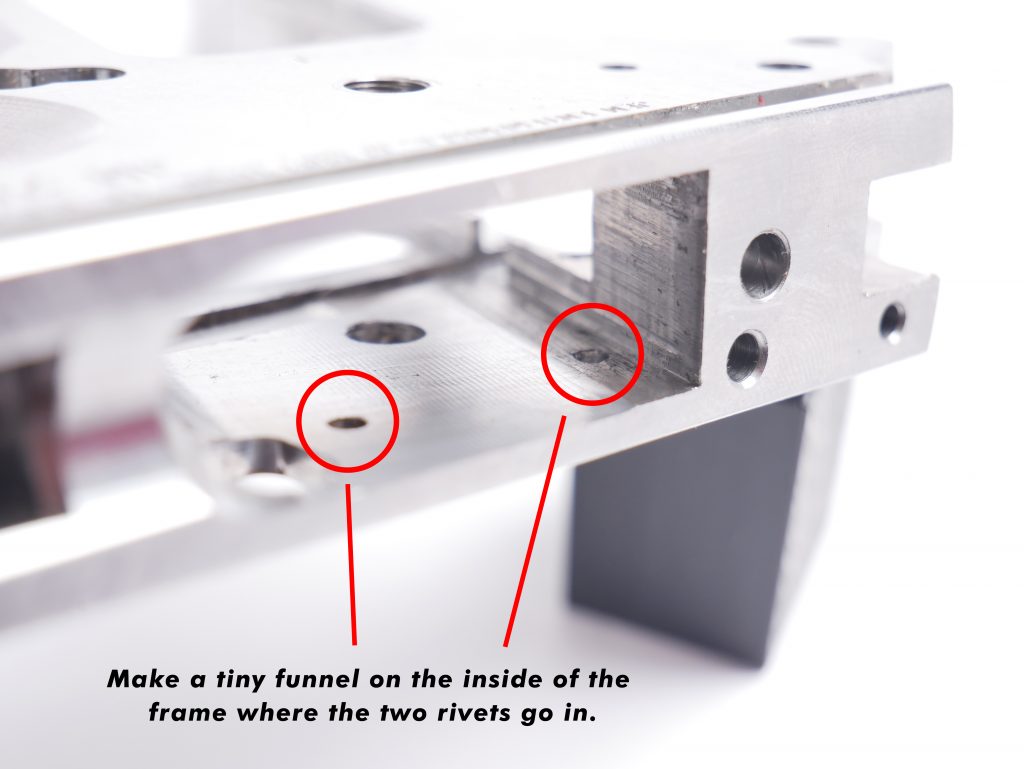

- First remove the grips from the gun. Using an air grinder or dremmel, make a tiny funnel on the inside of the frame where the two rivets of the plunger tube go in.
![](https://www.egwguns.com/wp/wp-content/uploads/2023/04/holes-1-1024x769.jpg)

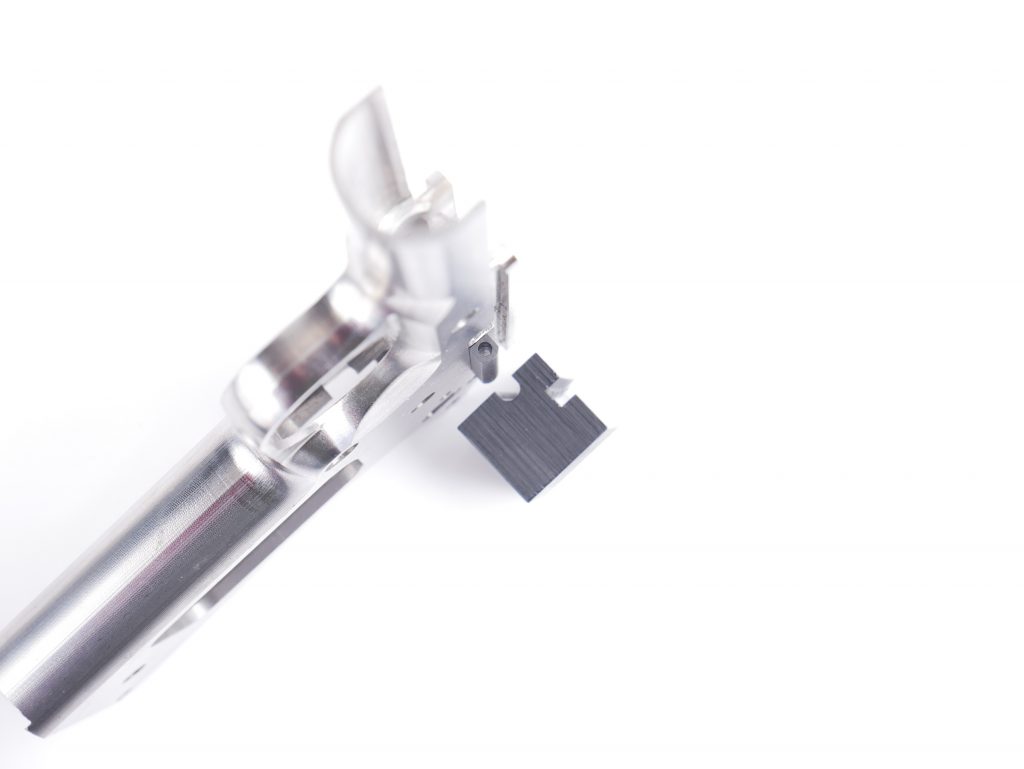

2. Next, test fit the plunger tube in the holes and make sure it is facing the correct way. Once the fitment is checked, apply red loctite and re-insert the plunger tube into the frame. Then place the correct groove on the delran block up against the frame and over the plunger tube.
![](https://www.egwguns.com/wp/wp-content/uploads/2023/04/P1160440-1024x769.jpg)

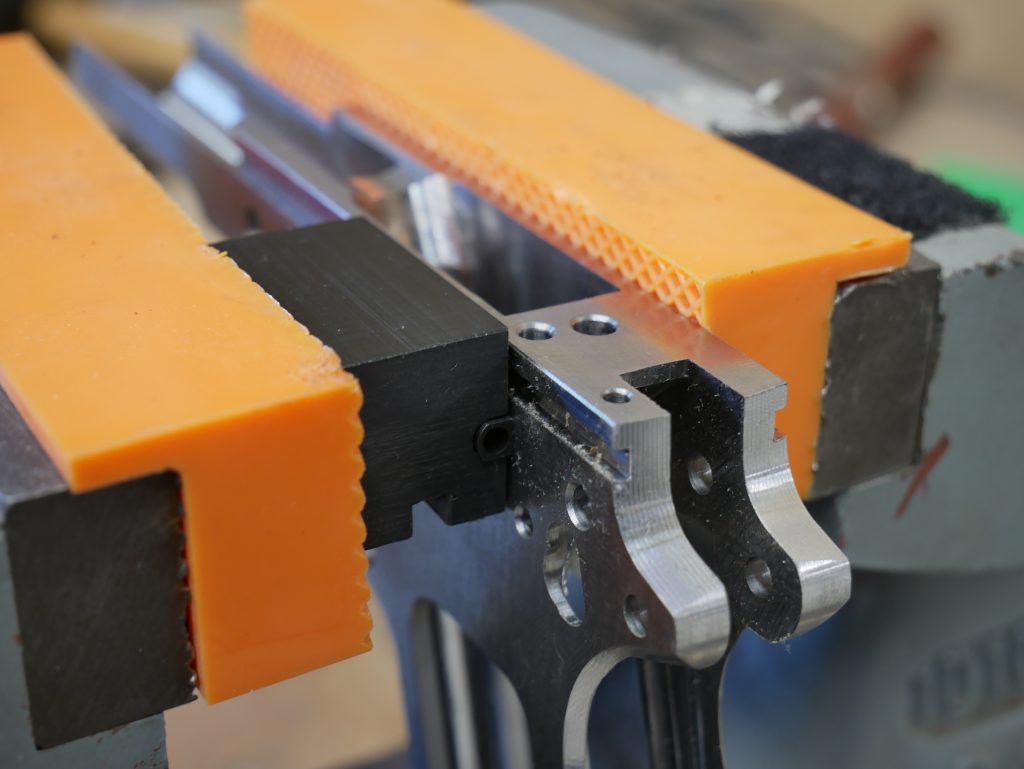

3. Place the frame with plunger tube and delran block into a smooth jaw vise and tighten.
![](https://www.egwguns.com/wp/wp-content/uploads/2023/04/P1160378-1024x769.jpg)
4. Insert staking tool up through frame with the pointed end of the staking screw facing the plunger tube.
![](https://i0.wp.com/www.egwguns.com/wp/wp-content/uploads/2023/04/P1160461-1024x769.jpg?ssl=1)
![](https://i0.wp.com/www.egwguns.com/wp/wp-content/uploads/2023/04/steakintool-1024x769.jpg?ssl=1)

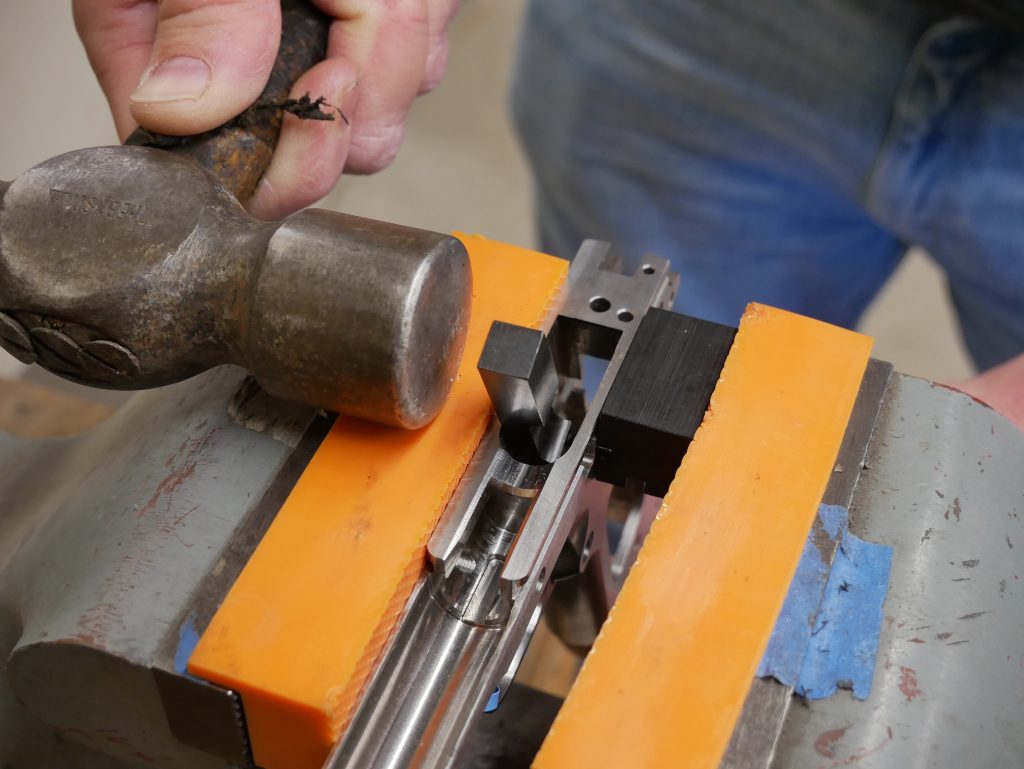

5. Next, insert the staking screw into the first plunger tube rivet, hammer the opposite side of the staking tool until the rivet has been swaged.
![](https://www.egwguns.com/wp/wp-content/uploads/2023/04/P1160427-1024x769.jpg)
Repeat for second plunger tube rivet. After the material has been swaged into the funnel, you are finished staking. You can remove any excess material with a dremel.
